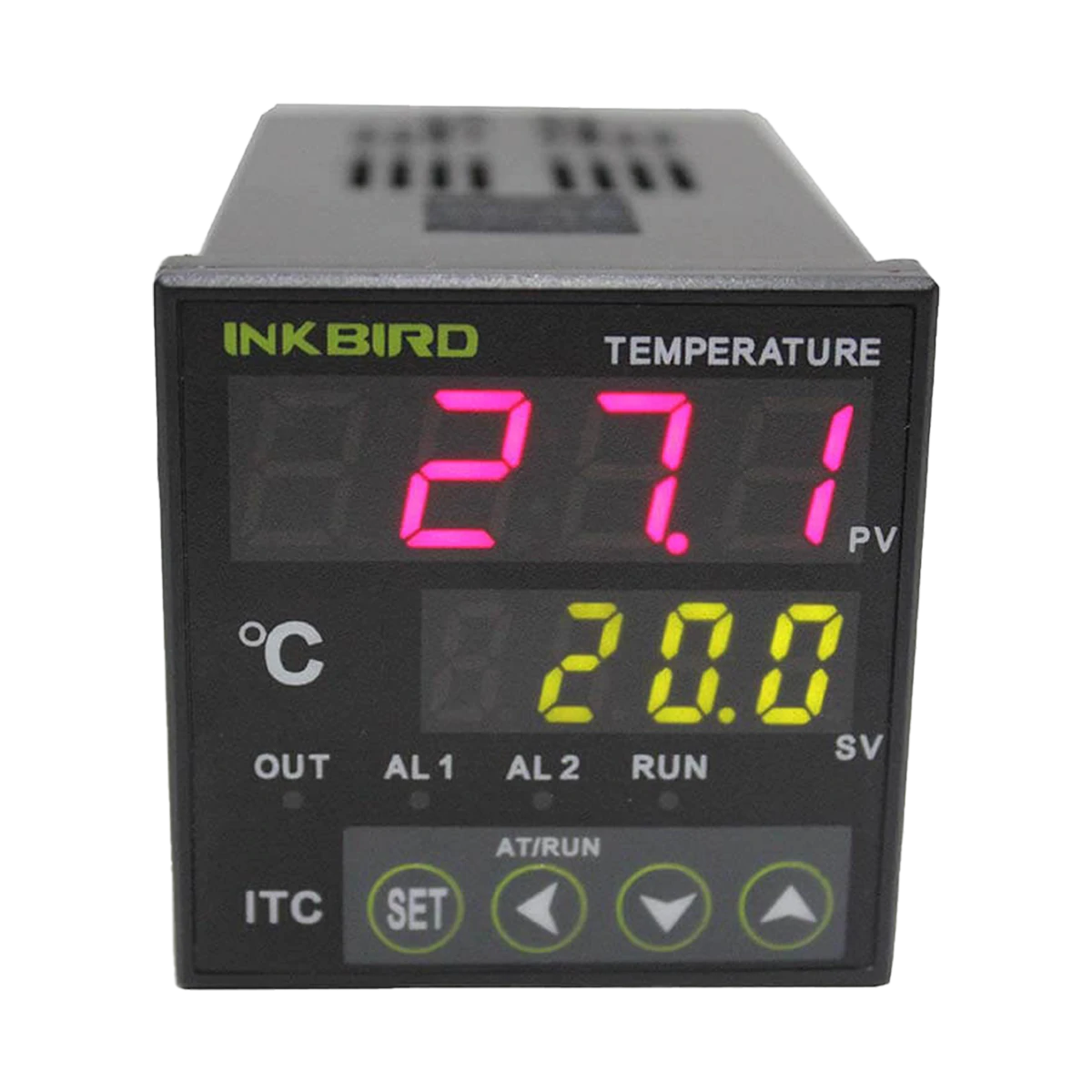

PID Temperature Controller – Panel Mounted
Equipment, InkBird Temperature Controllers, Testing & Measuring
PID Temperature Controller – Panel Mounted
$14.99
Availability: In stock
- Front Panel Dimension: DIN 48mm(W)X48mm(L)
- Power Supply Voltage: AC 100-240V 50/60Hz
- AC/DC 12-24V 50/60Hz
- DC 12-24V
- Operating voltage range: 85～110% Rated voltage
- Power Consumption: Approx. 5VA（100～240VAC）
- Approx. 4VA（12～24VAC）
- Approx. 3W（12～24VDC）
- Character PV: 4 digital 9.9mm height Red LED Letters
- Character SV: 4 digital 8mm height Green LED Letters
- Display Accuracy: ±0.2%FS 0.1ºC（＜1000ºC）；1ºC（≥1000ºC）
- Period of Sampling: 0.5S
- Temperature Compensation: 0-50ºC
- Main Output:
- Relay Contact Output (ITC-100R): AC250V 3A (Resistive load) ON/NC.
- Alarm 1 AC250V 3A (Resistive load) ON/NC.
- Voltage Pulses Output (ITC-100R): DC 12V, 30mA;Alarm 1 AC250V 3A (Resistive load) ON/NC
- Alarm Output:
- SSR output: AC250V 3A (Resistive load) ON/NC.
- Life expectancy of Relay: Mechanical≥10,000,000 operations Electrical≥10,000,000 operations
- Weight: Approx. 140g
- Environmental Conditions: -10～55ºC（no icy or condensation）, RH 35-85% Humidity
- Storage Temperature: -25～65ºC（no icy or condensation）

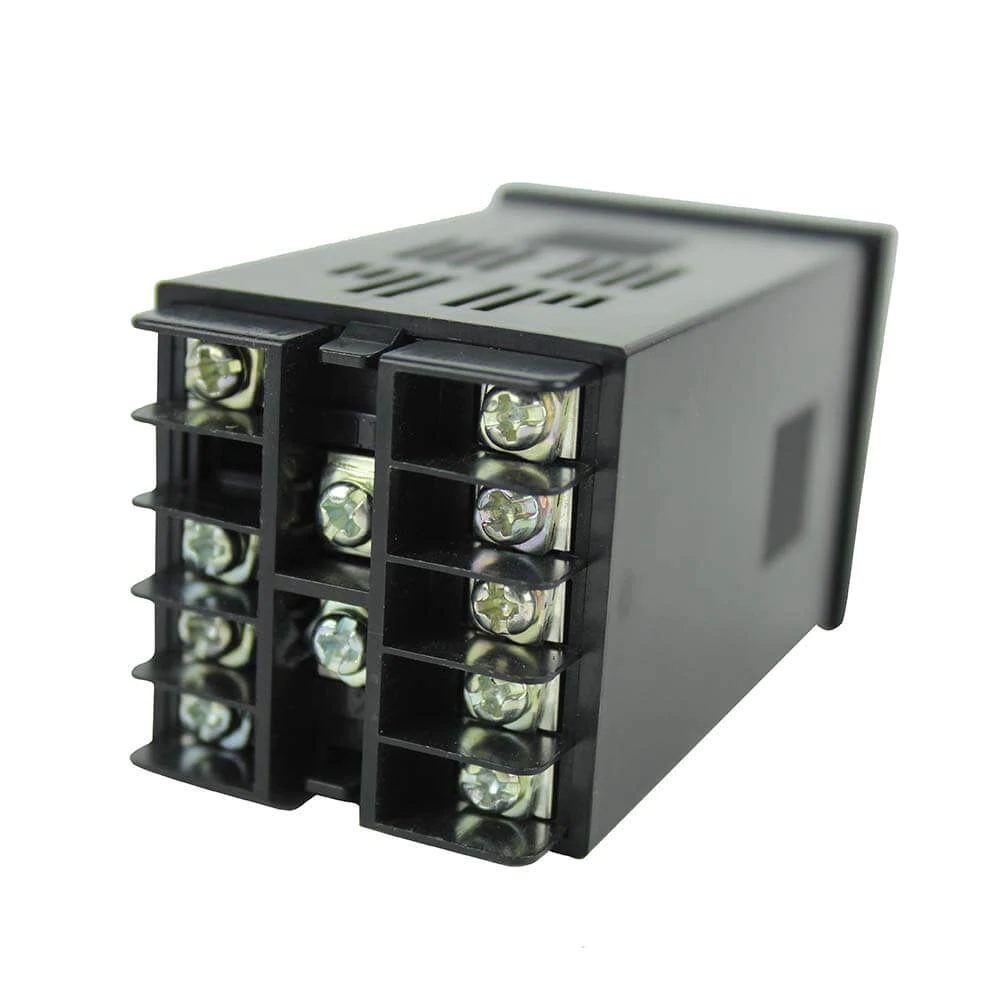

- Mounting Method: Flush mounting and screw terminals
| Weight | .5 lbs |
|---|---|
| Dimensions | 5.5 × 2.5 × 2.5 in |
