BlowTie Diaphragm Spunding Valve
Draft Equipment, Equipment
BlowTie Diaphragm Spunding Valve

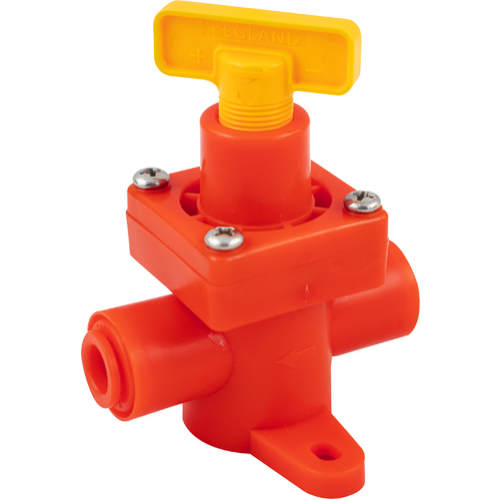

The Blow Tie Spunding Valve is used to release excess pressure on a pressurized fermenter or from a keg while doing pressure transfers. Thanks to the large surface area of the diaphragm, this style spunding valve is much more accurate than the poppet style. 8 mm Duotight fittings at both inlet and outlet make this unit perfect for use with EVABarrier 8 mm OD tubing.

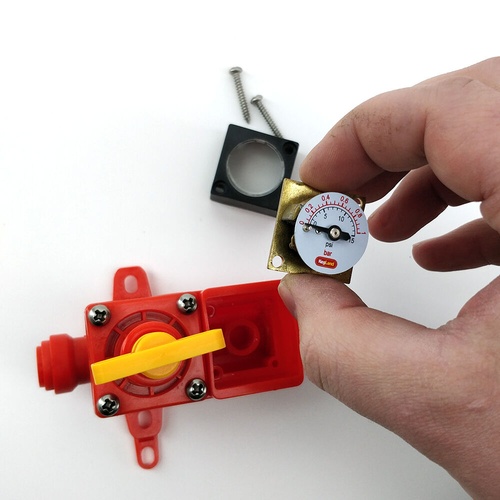

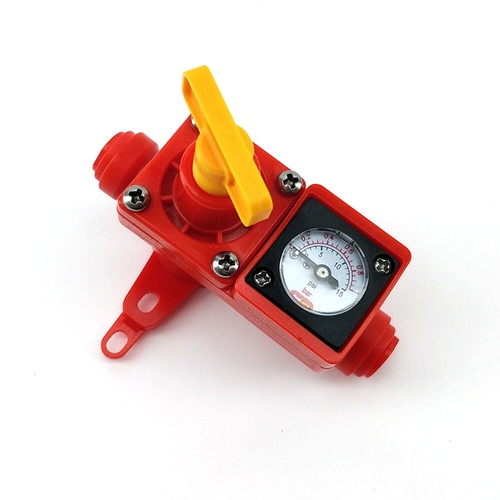

The BlowTie 2 features an optional integrated pressure gauge so you can quickly and easily dial in your pressure setting. The analog gauge is removable and can be swapped out with a gauge of a different pressure range or it can be swapped out for the Digital Mini Pressure Gauge.
Specifications:
- Made from food grade acetal
- Stainless screws
- Easily disassembles for cleaning
- 8mm (5/16″) Duotight fittings at both ends
- Optional Interchangeable pressure gauge
- Included gauge reads from 0-15 PSI (if selected)
WARNING: Do not exceed gauge pressure. Exceeding the pressure range will damage the gauge.
